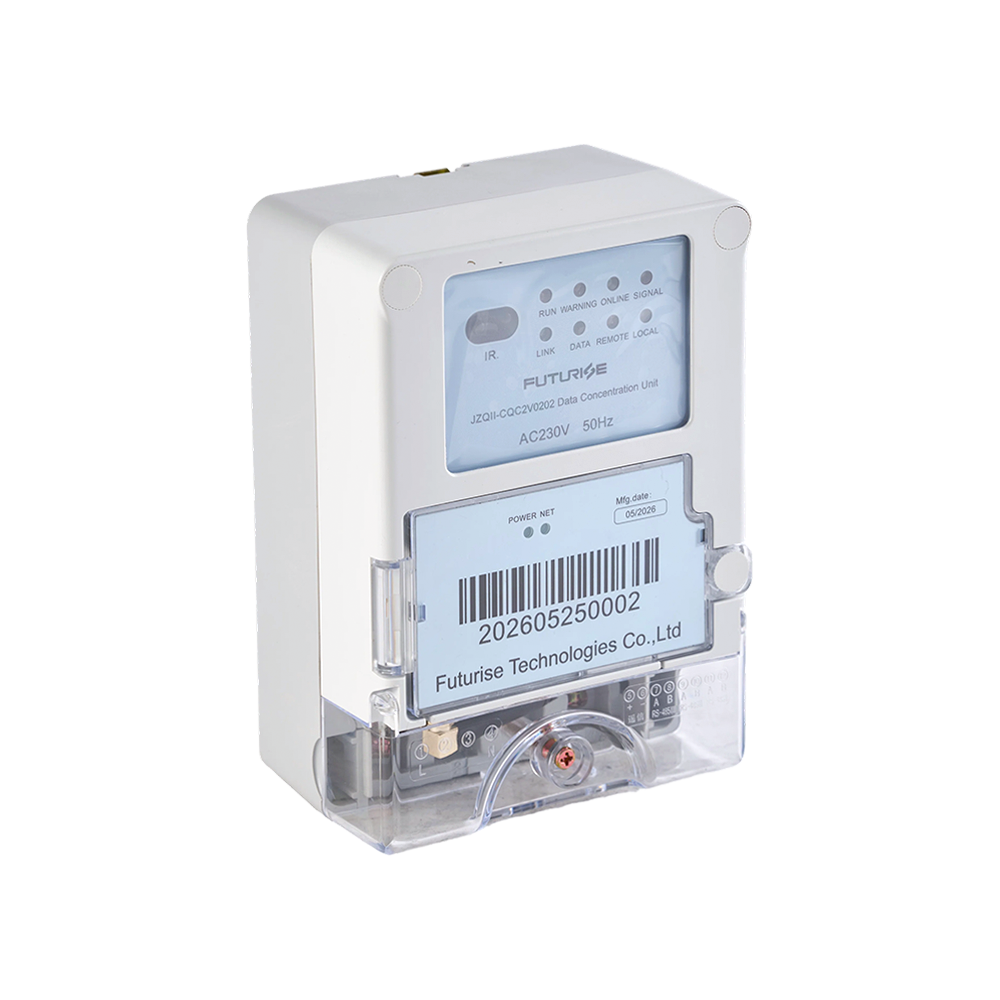

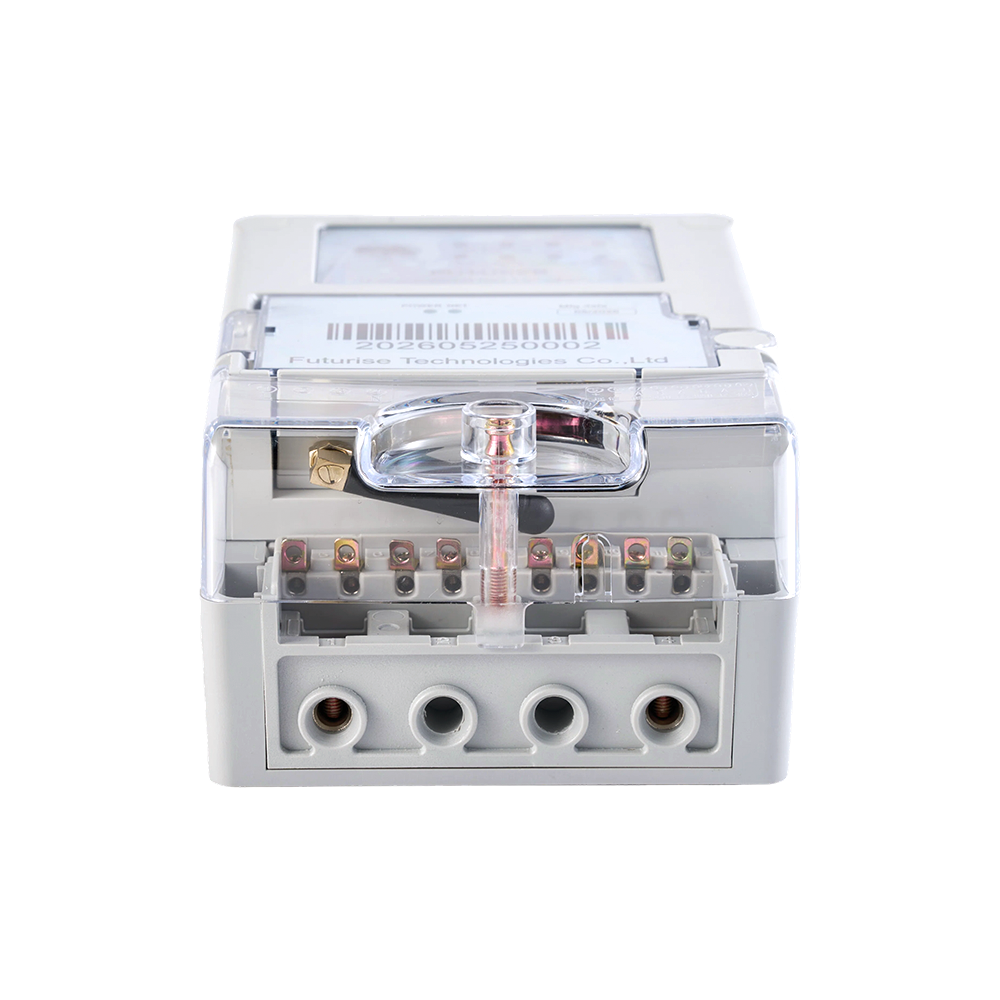

FUTURISE QCJZQ-II Single Phase Data Concentrator Unit
QCJZQ-II

FUTURISE QCJZQ-II Single Phase Data Concentrator Unit

FUTURISE QCJZQ-II Single Phase Data Concentrator Unit Inquiry Us

PREV：FUTURISE QCJZQ-I Three Phase Data Concentrator Unit

NEXT：No next article

  • Standards & Highlights
  • Main Function
  • Specifications

Introduction


QCJZQ-II single-phase DCU comes equipped with flexible multi-channel communication interfaces. It can fit a maximum of 32 energy meters and enables uplink data transmission over 3G,4G, GPRS, and Ethernet networks, paired with downlink access through PLC, RF, and RS-485. Serving as a centralized data hub for single-phase power grids, this unit delivers automatic meter reading, encrypted data storage, and instant power status tracking.

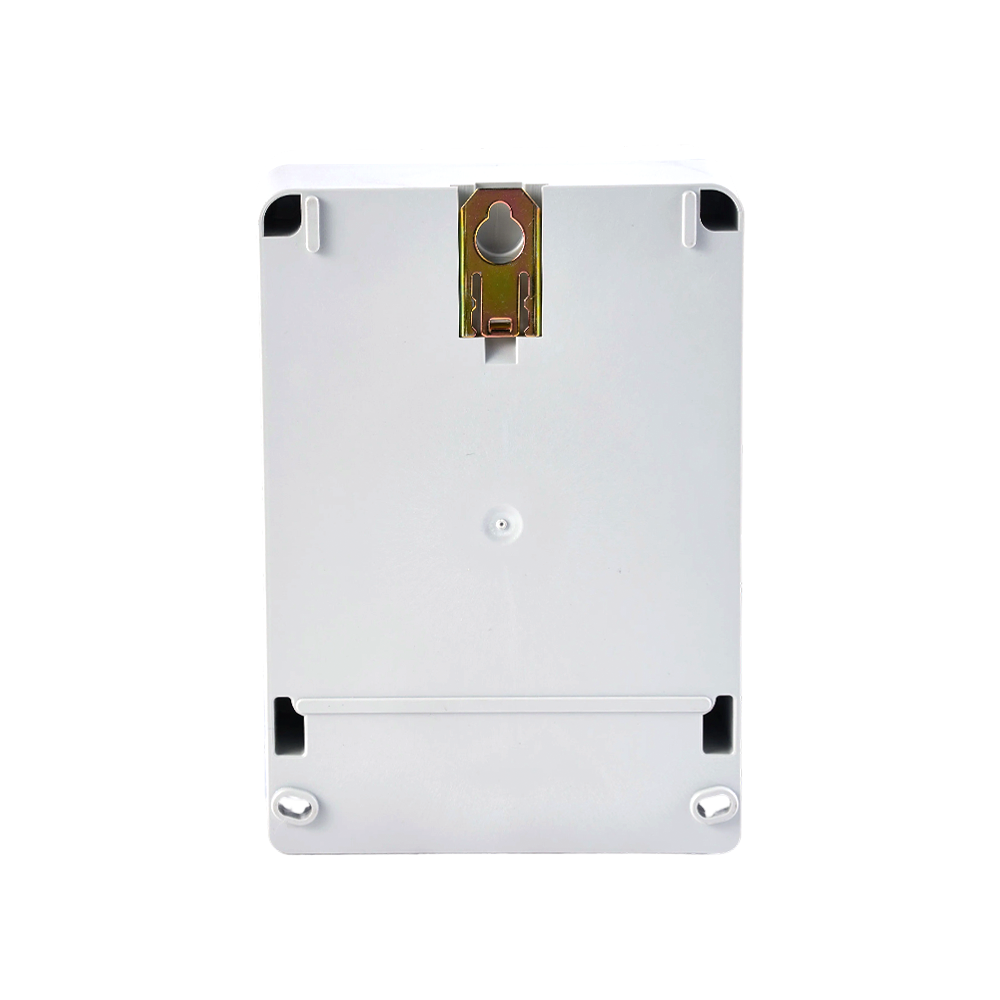

Agile Form Factor Architecture: Extremely lightweight 0.7kg baseline device profile (73×112×159mm) engineered for flexible DIN-rail or wall mounting within tight corridor panels.
Multi-Tier Downlink Flex: Hosts versatile local communication matrices including multi-protocol PLC, RF wireless bands, and dual RS485 serial communication configurations (supporting separate reading and cascading baud structures).
Comprehensive Data Security: Programmed with strict secure data logic and non-volatile memory chips, executing automatic power-off data protection to ensure billing logs are fully locked when the grid drops.



Standards

  • Q/GDW 373-380 2009 Power user electric energy
  • data acquisition system management
  • specification -master station construction (China)

Main Function


1. Meter management and schedule tasks
2. Data collection, storage, and transmission
3.GPRS/3G/4G/Ethernet/fiber optic for uplink communication to the master station.
4. Multiple downlink communication channels (PLC/RF/combo PLC+RF/RS485) to the energy meter.
5. Automatic self-test and generating exception event reports.
6. Local and remote upgrade
7. Multi-level security and AES 128-bit encryption.
8. Compatible with DLMS/COSEM protocol and multi-protocols.
9. Support gateway and DCU mode.
10. Save data on power-off.
11. Self-checking and recording anomaly information
12. Real-time clock calibration function.

Specifications

FUTURISE QCJZQ-II Single Phase Data Concentrator Unit
Specifications QCJZQ-II
Accuracy Active 1.0
Reactive 2.0
Vollage Rated current 3X57.7/100V,3X220/380V,3X230/240V,3X240/415V
Range 0.8Un-1.2Un
Limit 0.7Un-1.3Un
Frequency 50Hz/60Hz
Basic Current(lb) Range 3X5A,3X10A
Maximum Current(lmax) Range 3X40A,3X60A,3X80A,3X100A
Starting Current 0.4%lb
Display Type LCD
Digit 6+2
Power
Consumption		 Voltage Circuit ≤2.0W,10VA
Current Girauit ≤4VA
Communication Interface RS485/GPRS/3G/4G/PLC/RF/Ethernet
GPRS/CDMA 9600,8N1
485 for reading 2400,8N1
485 for cascading 9600,8N1
Standby 485 115200,8N1
Port forsetting parameter IR:1200,8E1
PLC 9600,8E1
Port for setting 115200,8N1
Temperature   Condition Work Temperature -25℃～+65℃
Storage Temperature -35℃～+75℃
Humidity ≤85%
IP degree IP54
Dimension 73X112X159mm
Weight Net weight 0.7kg
Weight 0.9kg
