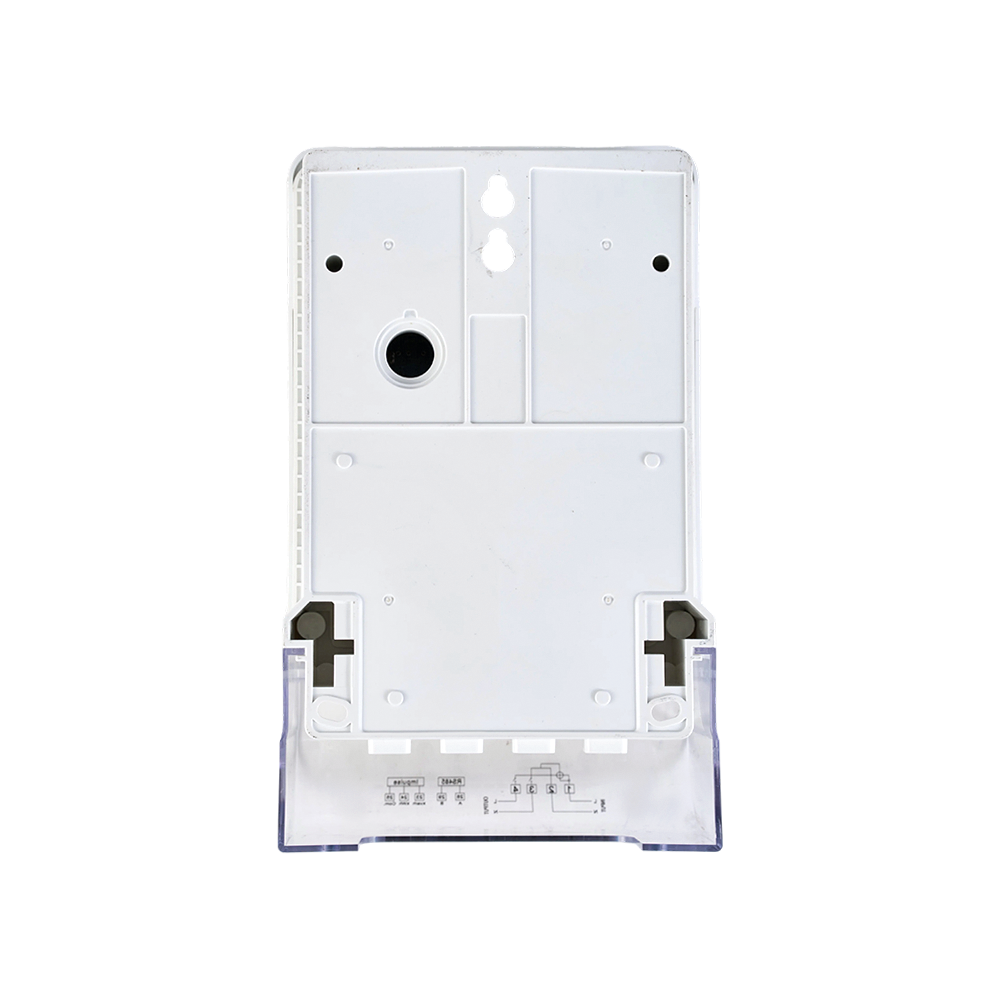

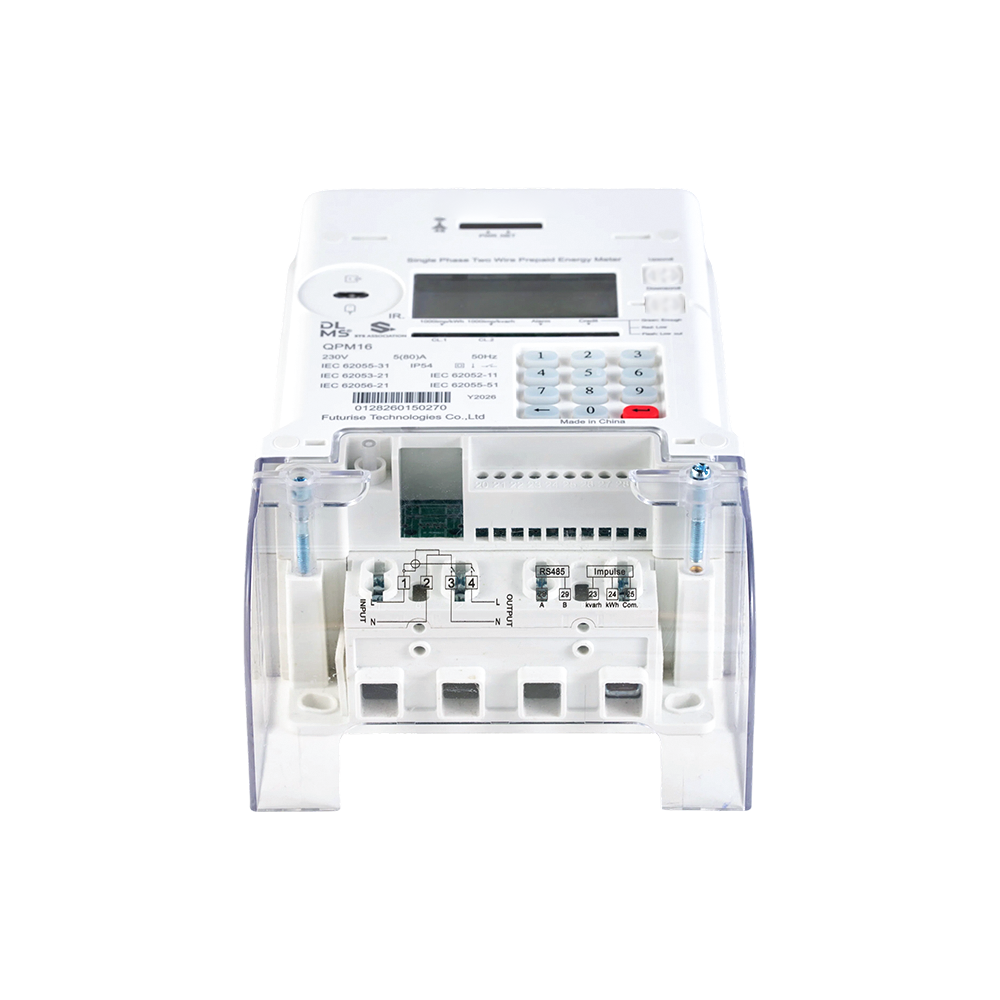

QSM11-2 is an adaptable single-phase smart meter. It integrates ultra-precise power measurement, smart data administration and modular communication, realizing prepaid and postpaid functions all in one unit. Practical advanced functions like multi-tariff settlement, load profile archiving, event log storage and tamper alert monitoring help utilities gain comprehensive oversight of power consumption. Its extensible hardware design facilitates later communication and functional upgrades, delivering dependable long-term support for smart metering system construction.
The defining characteristic of the QSM11-2 is its dual local & remote management functions. It supports localized credit management and real-time remote meter data monitoring, with dual recharge options available: on-site local token recharge and remote top-up(Remote charging requires configuration of the remote uplink communication module). It retains an integrated internal relay for immediate load demand control and automatic disconnection upon credit expiration, effectively eliminating utility financial risks and billing arrears.
Beyond its physical interface, the QSM11-2 shares a common modular communication core that allows for remote firmware upgrades and dual prepaid/postpaid switching. However, its mechanical design and operational layout are optimized for standalone durability, featuring an external replaceable battery for seamless maintenance and enhanced tamper-alert mechanisms. It represents the ideal secure solution for power distribution companies aiming to implement strict tariff control and simplified consumer-side billing.
1. Open protocol: DLMS/COSEM (E mode)
2. Prepayment and post-payment mode switchable for users’ convenience
3. Local and remote firmware upgrades.

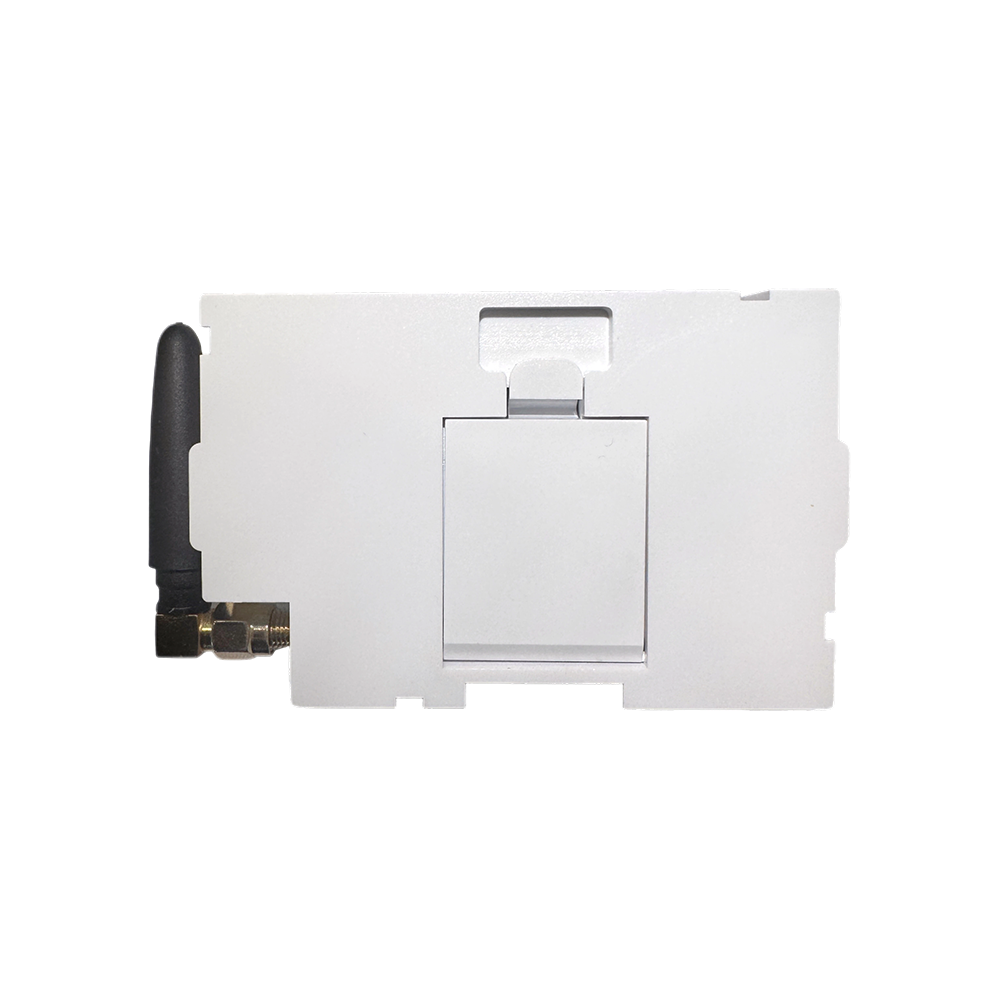

4. Plug-and-play communication module, such as GPRS, 3G, 4G, etc.
5. Internal switch relay for load demand control by configuration or remote communication
1. Measuring forward and reverse active energy in tariff.
2. Measuring forward and reverse reactive energy in tariff.
3. Instantaneous value measurement.
4. Up to 4 tariffs
5. Up to 8 divisions per day; weekend configurable
6. Up to 4 seasons, working days, and weekend tariff scheme configurable per season.
7.12 months billing data and other frozen data for inquiry.
8. Block or slide mode configurable for maximum demand.
9. Import and export active MD in tariff with time stamp.
10. Import and export reactive MD in tariff with time stamp.
11. Large digit LCD display, easy to read.
12. Display readable without main power (RWP).
13. Standardized OBIS display
14. Backlights to increase readability in low light conditions.
15. Real-time clock: clock with calendar, timing, leap year automatic conversion function.
16. Multiple event detections and records with categories of operation, power grid and tampering.
17. Base cover or terminal cover open detection and record
18. Prepayment mode via a numeric token with extended ways of recharging.
19. Channel quantity customized before leaving the factory; up to 8 channels.
20. Data for load profile record configuration

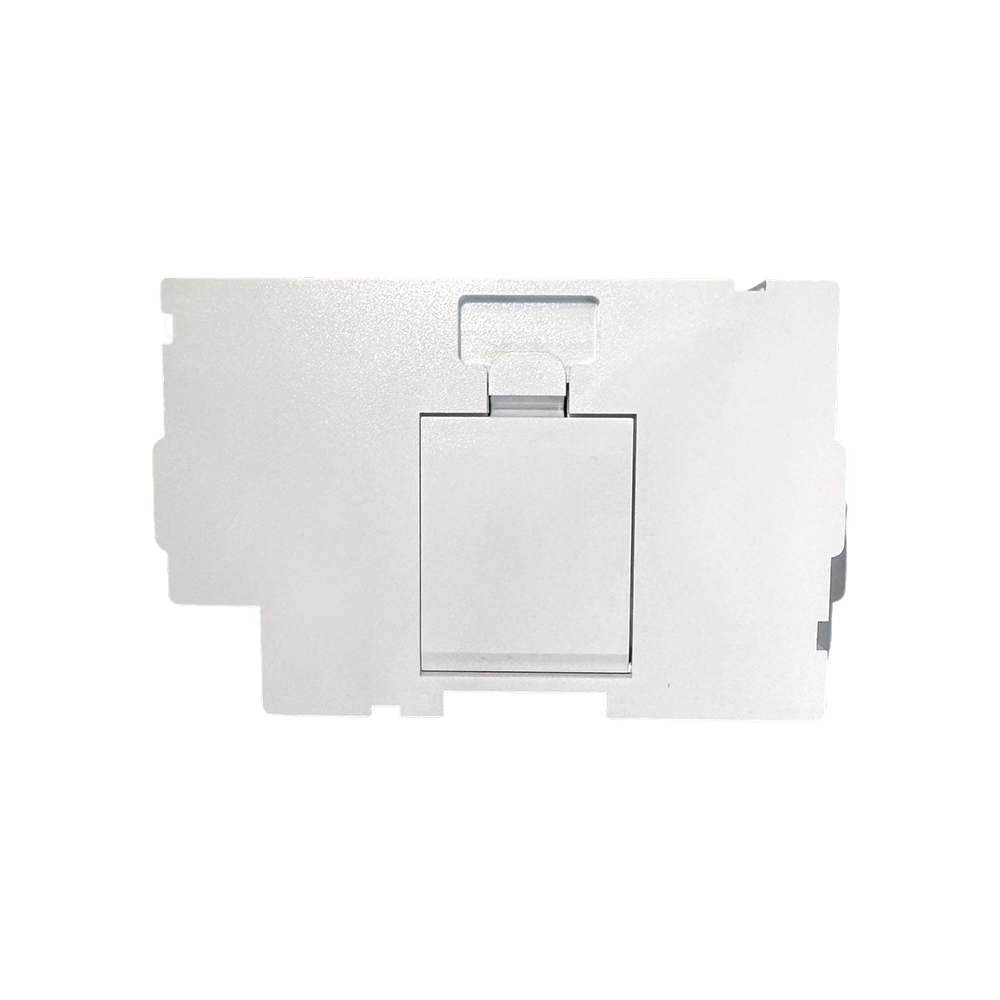

21. External battery replaceable
22. Load profile up to 12 channels
| Specifications | QSM11-2 | |
| Accuracy | Active | 1.0 |
| Vollage | Rated current | 110V,120V,220V,230V,240V |
| Range | 0.8Un-1.2Un | |
| Limit | 0.7Un-1.3Un | |
| Frequency | 50Hz/60Hz | |
| Basic Current(lb) | Range | 5A,10A |
| Maximum Current(lmax) | Range | 40A,60A,80A,100A |
| Starting Current | 0.4%lb | |
| Display | Type | LCD |
| Digit | 6+2 | |
| Power Consumption |
Voltage Circuit | ≤2.0W,10VA |
| Current Circuit | ≤4VA | |
| Communication | Interface | OPtical/RS485/M-bus/GPRS/3G/RF/PLC |
| Temperature Condition | Work Temperature | -25℃～+65℃ |
| Storage Temperature | -35℃～+75℃ | |
| Humidity | ≤85% | |
| IP degree | IP54 | |
| Dimension | 227X138X76mm | |
| Weight | Net weight | 0.74kg |
| Weight | 0.78kg | |
