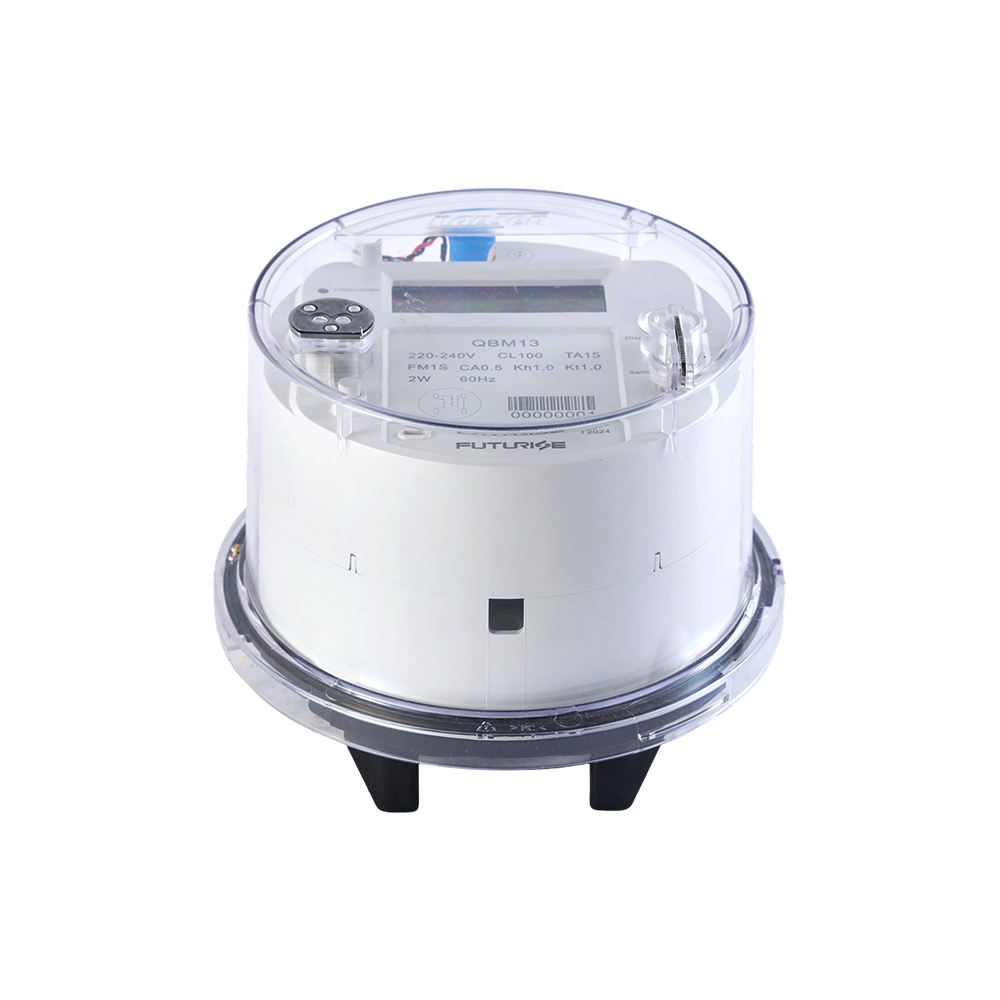

FUTURISE QBM13 CE Certified ANSI Single Phase Socket Digital Display Energy Meter

Introduction

QBM13 delivers bidirectional active energy measurement with full real-time data display.Built-in self-diagnosis detects operating faults automatically. Optional configurations include infrared & optical communication, multi-tariff metering, and 1S-type N-line failure tolerant measurement for stable reading even when neutral wire malfunctions.
Reliable, multi-functional and customizable for residential, commercial and public power metering projects.

Full ANSI Compliance Grid Core: Built and certified in strict accordance with ANSI C12.1, C12.10, C12.18, C12.19, and ANSI C12.20 technical protocols, ensuring seamless interoperability into legacy and modern North American socket frameworks.
Elite Metrology & Load Capacity: Delivers ultra-precise CA0.5 class active energy indexing across global rated single-phase voltages (110V, 120V, 220V, 230V, 240V) with massive current processing thresholds rated up to 100A or 200A maximum.
Comprehensive Diagnostics & Interface: Driven by an internal self-diagnosis firmware engine that automatically logs operational faults and anomalies onto a clean 6+2 digit backlit LCD display. Features built-in local Optical ports alongside optional Infrared communication configurations for hassle-free field probing, multi-tariff TOU scheduling, and maximum demand calculations.

Standards

• ANSI C12.1
• ANSI C12.10
• ANSI C12.18
• ANSI C12.19
• ANSI C12.20
