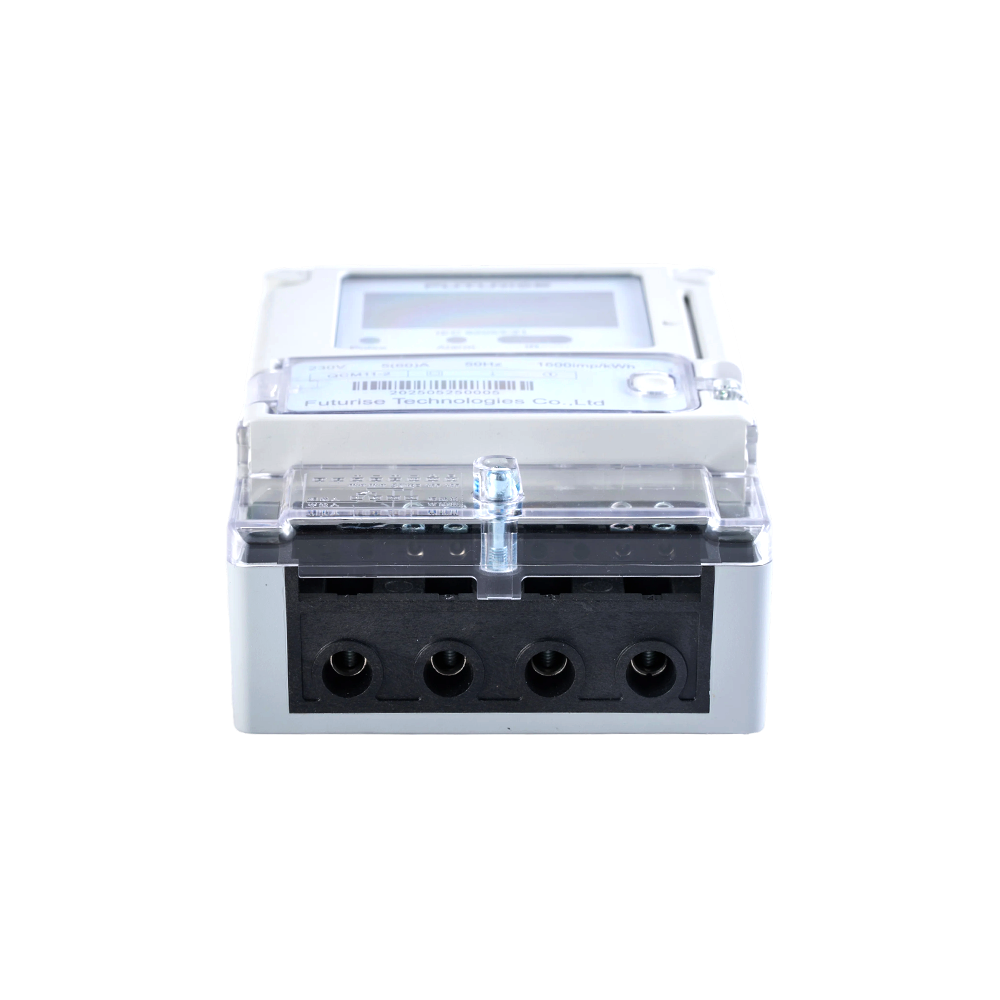

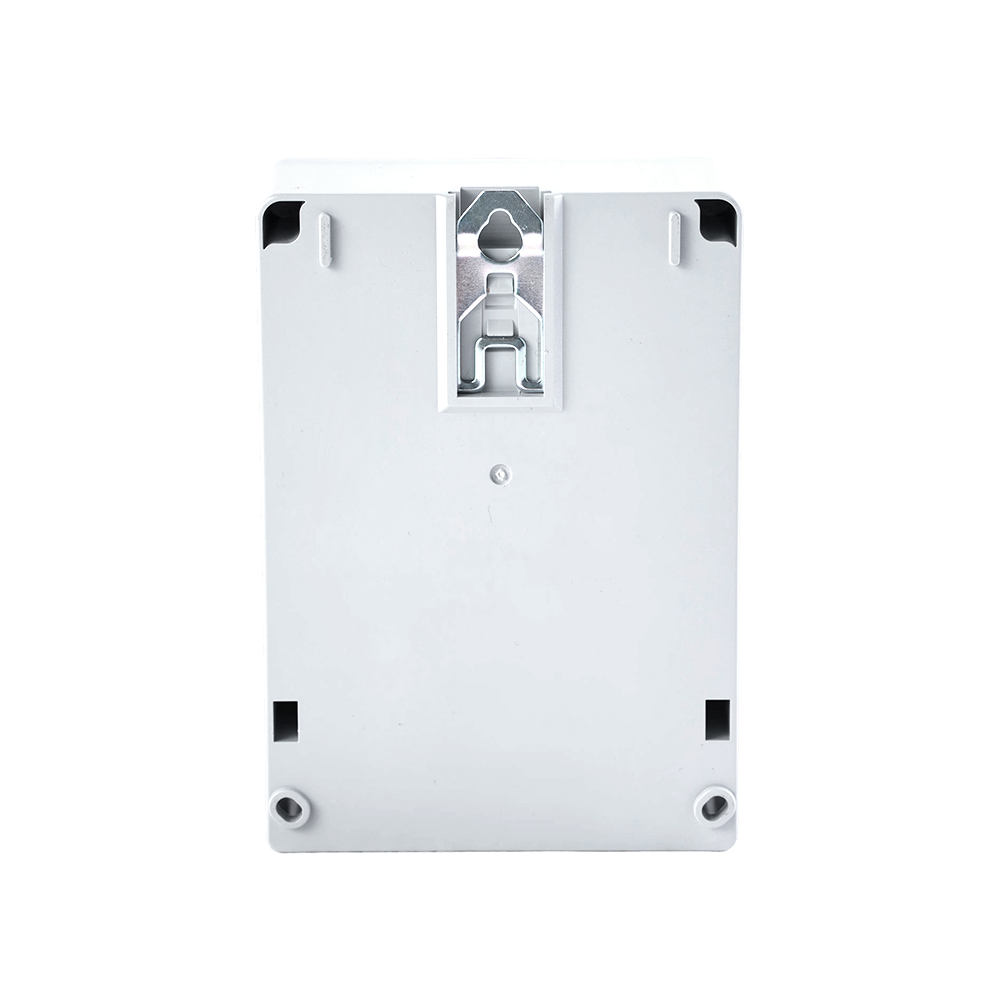

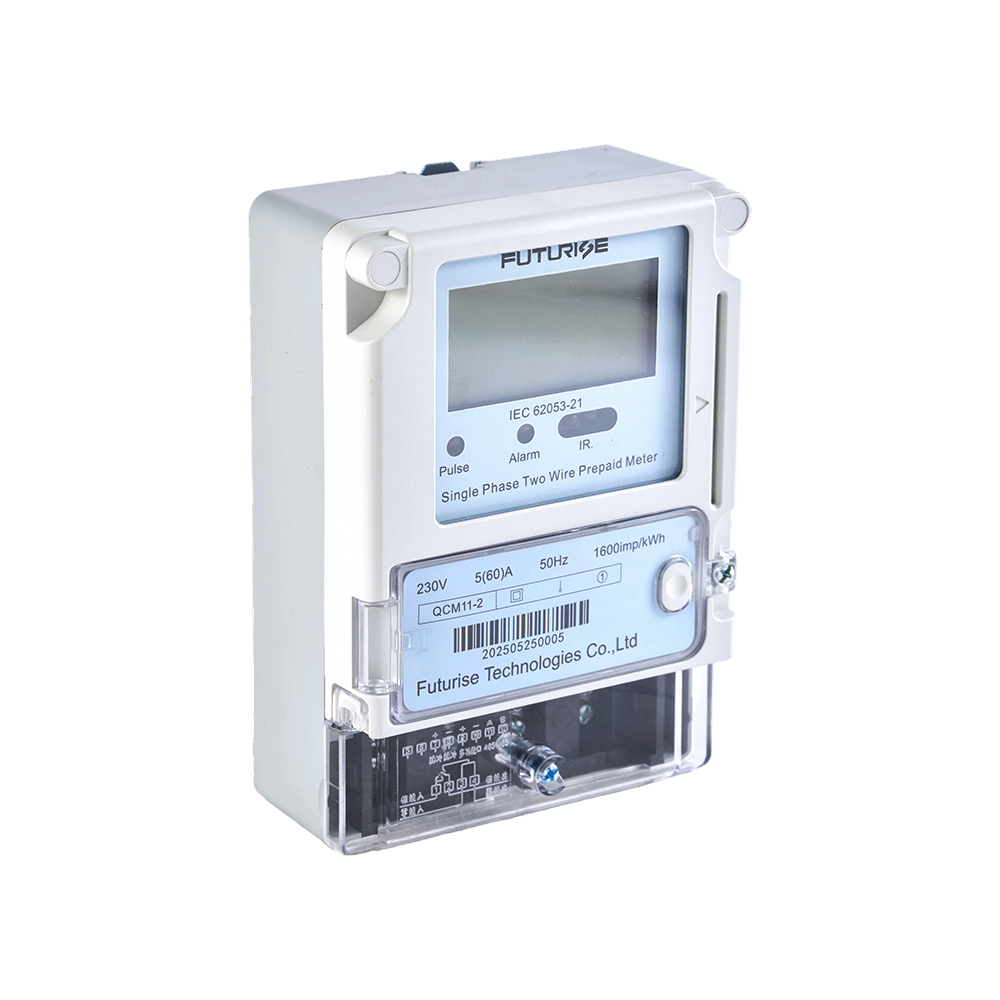

The QCM12 is an IC card prepaid meter designed for flexible and secure energy management. It supports multi-tariff billing, bi-directional energy measurement, and comprehensive event recording. With RS485 and infrared communication interfaces, overload protection, and automatic credit management, the QCM12 provides greater visibility and control for modern prepaid metering applications.
Hybrid Communication Architecture: Integrated with localized Infrared and RS485 serial communication, with flexible plug-and-play expansion modules of 3G,4G, GPRS, RF, and PLC to support macro-grid remote telemetry.
Advanced Cryptographic Event Auditing: Features an elite internal logging matrix that records granular system warnings, including specific date-stamped IC card crack events, overdraft power usage logs, and case cover opening tamper attempts.
Flexible Multi-Tariff Economics: Programmed with comprehensive Time-of-Use (TOU) billing capabilities and a high-resolution 6+2 digit LCD display, permitting complex multi-tariff scheduling to mirror dynamic grid pricing structures.
1. STS standard protocol ensures an open and secure operating system
2. Prepayment and post-payment modes are switchable for users’ convenience
1. Bi-directional measurement of active energy.
2. Prepayment is made via a numeric token logged in the IC card.
3. One meter, one card, ensures data of power consuming safety and reliable.
4.Overdraft/Credit power usage.
5.Overload detection, control, and alarming.
6. TOU support, multi-tariff energy measurement.
7. Support errors self-detection function.
8. Support infrared and RS485,4G communication.
9. Event recording: IC card crack event, overdraft event, and cover opening event.
10. Automatic cutoff when the credit is zero.
| Specifications | QCM12 | |
| Accuracy | Active | 1.0 |
| Vollage | Rated current | 110V,120V,220V,230V,240V |
| Range | 0.8Un-1.2Un | |
| Limit | 0.7Un-1.3Un | |
| Frequency | 50Hz/60Hz | |
| Basic Current(lb) | Range | 5A,10A |
| Maximum Current(lmax) | Range | 40A,60A,80A,100A |
| Starting Current | 0.4%lb | |
| Display | Type | LCD |
| Digit | 6+2 | |
| Power Consumption |
Voltage Circuit | ≤2.0W,10VA |
| Current Girauit | ≤4VA | |
| Communication | Interface | IR,RS485,RF,PLC |
| Temperature Condition | Work Temperature | -25℃～+65℃ |
| Storage Temperature | -35℃～+75℃ | |
| Humidity | ≤85% | |
| IP degree | IP54 | |
| Dimension | 159X111X60mm | |
| Weight | Net weight | 0.63kg |
| Weight | 0.67kg | |
