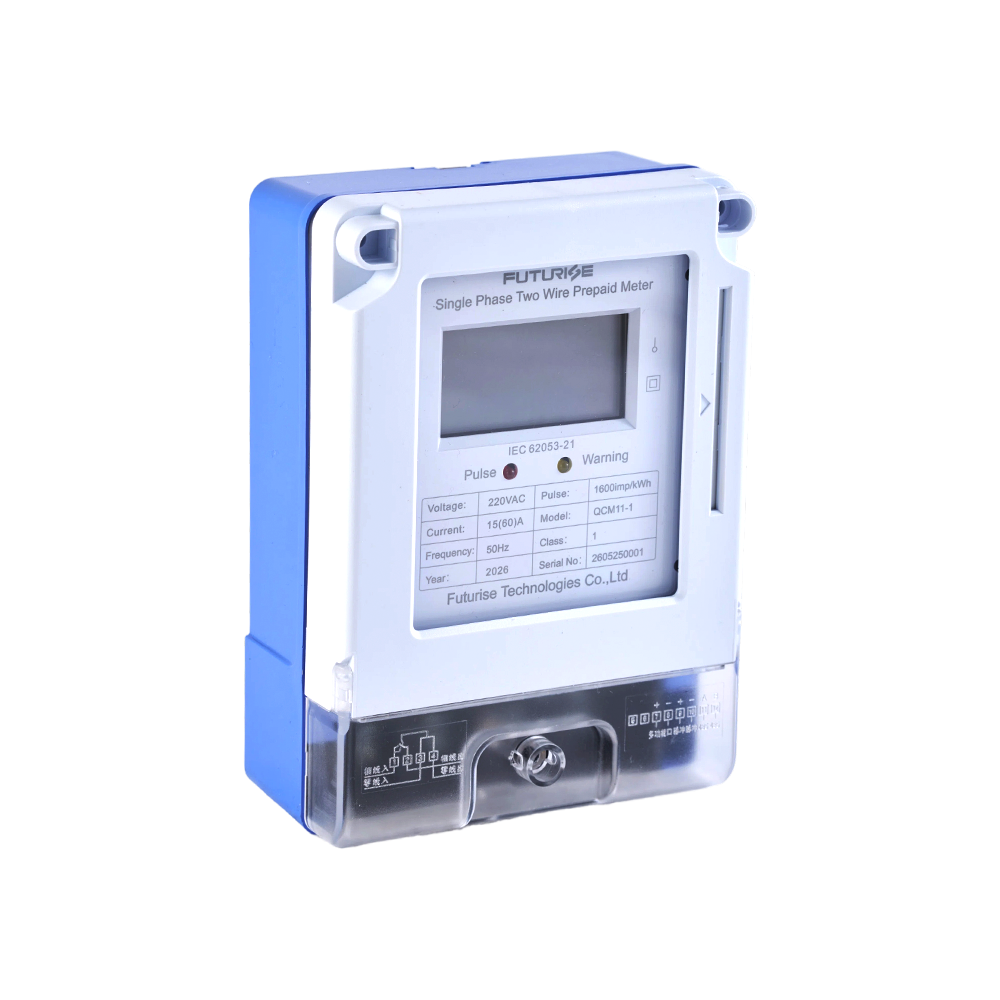

FUTURISE QCM11 Single Phase IC Card Prepayment Energy Meter
QCM11

FUTURISE QCM11 Single Phase IC Card Prepayment Energy Meter

FUTURISE QCM11 Single Phase IC Card Prepayment Energy Meter Inquiry Us

PREV：FUTURISE QCM12 Single Phase Prepaid IC Card Energy Meter (Wireless Module Optional)

NEXT：No next article

  • Standards & Highlights
  • Main Function
  • Specifications

Introduction


The QCM11 is a single-phase IC card prepaid meter built for reliable revenue management and controlled energy consumption. Its secure one-meter-one-card design, overload protection, and automatic credit control help ensure accurate billing and dependable prepaid operation.

Fail-Safe Offline Revenue Protection: Implements strict cryptographic one-to-one card validation logic, ensuring that tenant power consumption data is thoroughly secure and immune to cross-device spoofing or external signal interference.
Heavy-Duty Load & Arrears Control: Equipped with an internal latching relay capable of handling continuous maximum currents up to 100A, driving immediate automated circuit isolation the exact millisecond the prepaid credit reaches zero balance.
Industrial Enclosure Resilience: Enclosed in a flame-retardant IP54-rated heavy casing (215×112×58mm), calibrated to ensure high-accuracy Class 1.0 active measurement profiles across extreme temperature ranges from −25°C to +65°C.

Standards

  • IEC 62052-11
  • IEC 62053-21
  • IEC 62055-41
  • IEC 62056-21

Highlights


1. STS standard protocol ensures an open and secure operating system
2. Prepayment and post-payment modes are switchable for users’ convenience

Main Function


1. Bi-directional measurement of active energy.
2. Prepayment is made via a numeric token logged in the IC card.
3.One meter, one card, ensures data for power consumption safety and reliability.
4.Overdraft/Credit power usage.
5. Overload detection, control, and alarming.
6. Support errors self-detection function.
7. Automatic cutoff when the credit is zero.

Specifications

FUTURISE QCM11 Single Phase IC Card Prepayment Energy Meter
Specifications QCM11
Accuracy Active 1.0
Vollage Rated current 110V,120V,220V,230V,240V
Range 0.8Un-1.2Un
Limit 0.7Un-1.3Un
Frequency 50Hz/60Hz
Basic Current(lb) Range 5A,10A
Maximum Current(lmax) Range 40A,60A,80A,100A
Starting Current 0.4%lb
Display Type LCD
Digit 6+2
Power
Consumption		 Voltage Circuit ≤2.0W,10VA
Current Girauit ≤4VA
Communication Interface \
Temperature   Condition Work Temperature -25℃～+65℃
Storage Temperature -35℃～+75℃
Humidity ≤85%
IP degree IP54
Dimension 215X112X58mm
Weight Net weight 0.6kg
Weight 0.64kg
