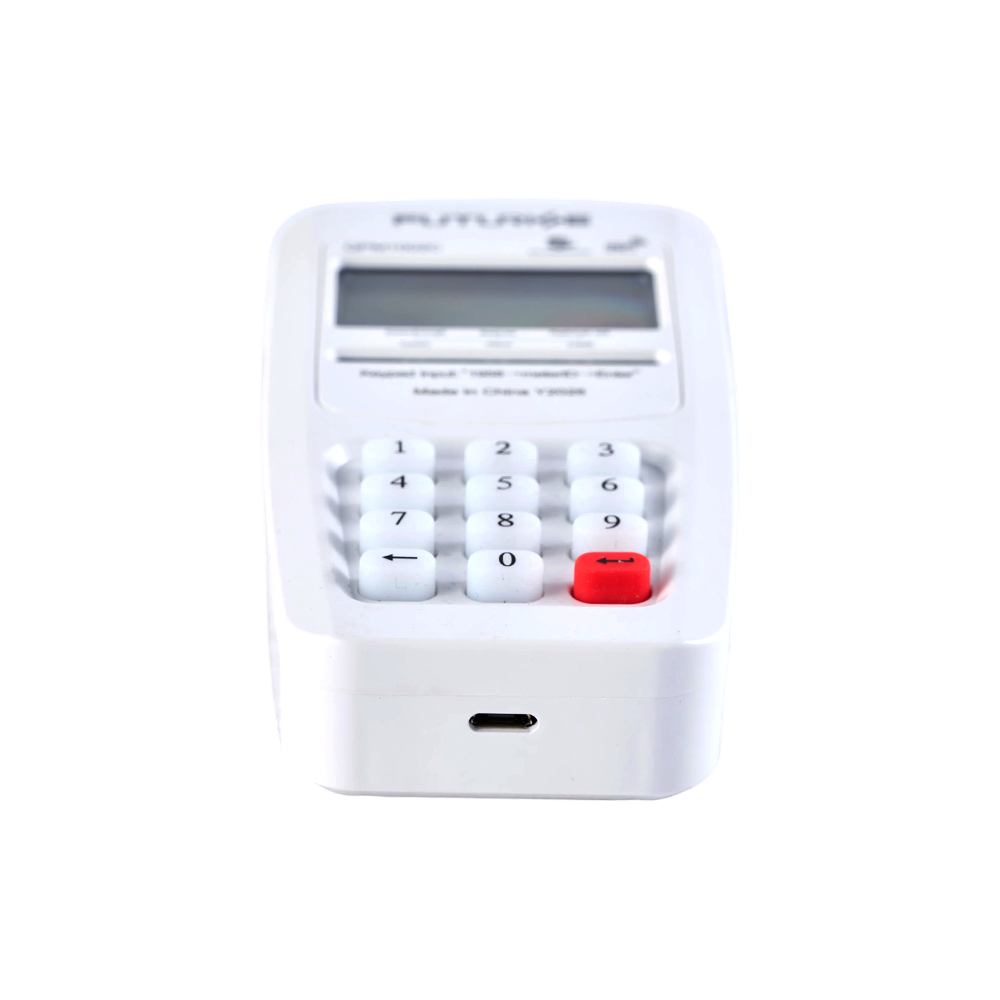

The QPM1002C is a Customer Interface Unit(CIU) with a keypad, used for recharging electricity meters. It communicates with the metering unit via RF for energy monitoring, data inquiry, and top-up.
Long-Range Wireless RF Coupling: Tailored specifically for suburban neighborhoods, single-family detached houses, and rural agricultural micro-grids where extending physical communication cables from outdoor poles or boundary fences into the home is cost-prohibitive.
Independent Power Backup: Outfitted with an optimized battery backup configuration that retains active wireless links and permits token balance queries, and historical consumption data readouts during structural grid blackouts.
Intuitive Vending Interface: Built around a responsive tactile keypad supporting 20-digit STS token entry, instantly transmitting voucher approvals wirelessly to the remote MCU and giving immediate confirmation of successful recharges.
1. High precision: IEC Class1.0 active / Class2.0 reactive
2.Wide DC voltage: 18–24V; wide grid frequency: 46–65Hz
3. Backup battery for PLC & RF communication versions
4.Operating temp: -25°C ~ +60°C, IP54 protection
MTTF ≥15 years
Equipped with a multi-icon LCD screen to display metering data, OBIS codes, measurement units, communication, credit balance, low battery, fault alarms, relay switching states, recharge results, and multi-channel S1–S6 device status.
| Specifications | QPM1002C |
| Limit working voltage range | 220~240V AC |
| Limit working temperature range | -40℃～+85℃ |
| Protection Level | IP51 |
| Relative humidity | ≤95% |
| Weight | 0.2kg |
| Dimension | 128*68*26 |
